Filling joints and cement injections with filling joints machine FC 50



Professional filling joints machine FC 50 in a building site at Marostica (VI), Italy, to flight of steps of Carmini near the prestigious Piazza degli Scacchi (event of the Chess Game with living persons), press article also appeared in the n° 133 of Italian building magazine Imprese edili.
In This building site, using the filling joints machine FC 50 - 2,2 kW, were made a controlled pressure injections with cement at 2 bar of pressure, and the subsequent filling of joints between the stones that composed the walls with traditional mortar made on-site with sand granulometry up to 6 mm.
These processes were needed to consolidate, restructure and refine the ancient walls along flight of steps of Carmini.
In the following photos, you can appreciate the work done by grout pump FC 50 - 2,2 kW..


walls grouting of scalinata dei Carmini with filling joints machine FC 50

Flight of steps of Carmini near
the prestigious piazza degli
Scacchi at Marostica - Italy.

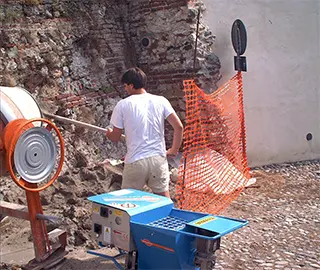

traditional mortar for filling joints with grouting pump FC 50

Preparation of the mixture
for filling joints machine
FC 50 ready to be pumped.

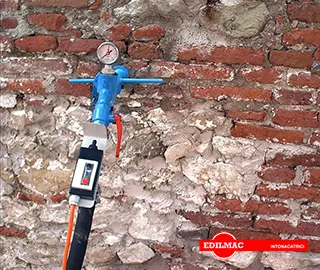

cement injection of consolidation with pump FC 50

controlled pressure
injection with cement at 2 bar
for walls consolidation.


consolidation pressure injection by injector pump FC 50

Walls after consolidation
performed by cement
injections pump FC 50.


filling joints of stones with mortar by filling joints machine FC 50

Filling the large
joints of stones that
composed the walls.


filling joints and injections performed by single-phase pump FC 50

Carmini Flight of steps work
completed after the consolidation
and filling joints of walls.
